How to set Western Digital drive to kernel mode

Postby ACE_Admin » 02.06.08, 17:16

This instruction describes how to set the WD drives to Kernel mode.



To set the 2.5" WD SATA to Kernel you just need to unscrew PCB and connect it to PC-3000 PATA-SATA adapter without HDA.
Attachments

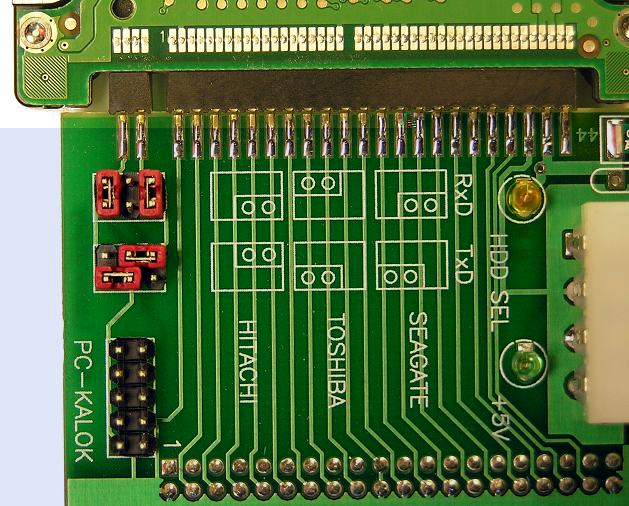

WD 2.5" PATA drives

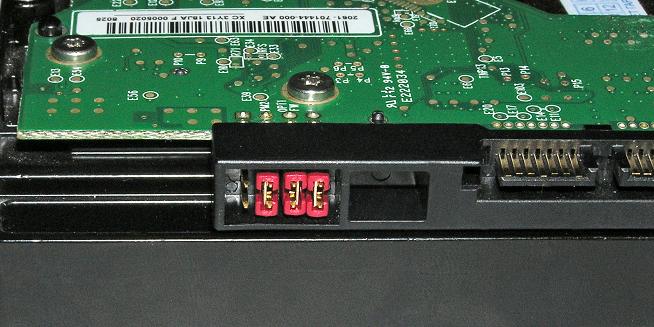

WD 3.5" SATA drives

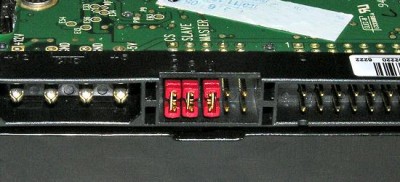

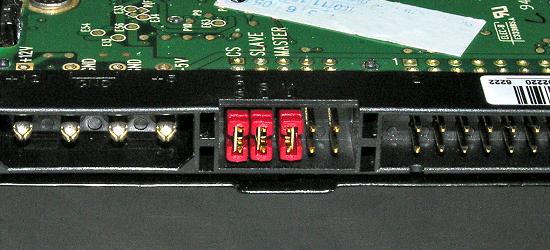

WD 3.5" PATA drives
