WD2000JD - Interesting Errors

[ddr]

Hi All,

Perhaps someone has seen this before and may be able to help. It feels like a head gone, but i am unable to gain access to the ROM to alter the head map.. Any ideas would be appreciated.

Techno mode key
Techno mode key......................... : Ok

RAM:
Zone allocation table................... : Ok
Cyl Count............................... : 81003
SA SPT.................................. : 900

Head number reading..................... : Ok
Heads number............................ : 5

ROM:
ROM reading............................. : HDDs ROM reading error Data request error - Device Error Detected: "Unknown error. Error code: 0017"

Service area:
SA dir reading.......................... : Ok (Copy 0)
Configuration reading................... : Ok
Master Password......................... : "ú"€.÷ðÛZÚ"„.=.óðÛZá.òñ.Âæ÷...'òò"
User Password........................... : has not been set

View password information


Configuration module
Loading................................. : Ok
Checksum................................ : Ok
Version................................. : 0100D
Date.................................... : 24-01-05

Master Password
Set..................................... : Yes
Text.................................... : ú"€.÷ðÛZÚ"„.=.óðÛZá.òñ.Âæ÷...'òò
Hex..................................... : FA 22 80 02 F7 F0 DB 5A DA 22 84 02 3D 0E F3 F0 DB 5A E1 11 F2 F1 10 C2 E6 F7 00 02 1B 27 F2 F2

User Password
Set..................................... : No
SA structure test
Module 19 Copy 0........................ : Ok
Module 19 Copy 1........................ : No copy
Module 1B Copy 0........................ : Ok
Module 1B Copy 1........................ : No copy
Module 1A Copy 0........................ : Ok
Module 1A Copy 1........................ : No copy
Module 1F Copy 0........................ : Ok
Module 1F Copy 1........................ : No copy
Module AF Copy 0........................ : Ok
Module AF Copy 1........................ : No copy
Module A0 Copy 0........................ : Ok
Module A0 Copy 1........................ : No copy
Module A1 Copy 0........................ : Ok
Module A1 Copy 1........................ : No copy
Module A2 Copy 0........................ : Ok
Module A2 Copy 1........................ : No copy
Module A3 Copy 0........................ : Ok
Module A3 Copy 1........................ : No copy
Module 42 Copy 0........................ : Ok
Module 42 Copy 1........................ : No copy
Module 43 Copy 0........................ : Ok
Module 43 Copy 1........................ : No copy
Module 44 Copy 0........................ : Ok
Module 44 Copy 1........................ : No copy
Module 59 Copy 0........................ : Ok
Module 59 Copy 1........................ : No copy
Module 5A Copy 0........................ : Ok
Module 5A Copy 1........................ : No copy
Module 20 Copy 0........................ : Ok
Module 20 Copy 1........................ : No copy
Module 25 Copy 0........................ : Ok
Module 25 Copy 1........................ : No copy
Module 23 Copy 0........................ : Ok
Module 23 Copy 1........................ : No copy
Module 4C Copy 0........................ : Ok
Module 4C Copy 1........................ : No copy
Module 70 Copy 0........................ : Ok
Module 70 Copy 1........................ : No copy
Module 72 Copy 0........................ : Ok
Module 72 Copy 1........................ : No copy
Module 74 Copy 0........................ : Ok
Module 74 Copy 1........................ : No copy
Module 4D Copy 0........................ : Ok
Module 4D Copy 1........................ : No copy
Module 71 Copy 0........................ : Ok
Module 71 Copy 1........................ : No copy
Module 73 Copy 0........................ : Ok
Module 73 Copy 1........................ : No copy
Module 75 Copy 0........................ : Ok
Module 75 Copy 1........................ : No copy
Module 18 Copy 0........................ : Ok
Module 18 Copy 1........................ : No copy
Module 2B Copy 0........................ : Ok
Module 2B Copy 1........................ : No copy
Module 4E Copy 0........................ : Ok
Module 4E Copy 1........................ : No copy
Module 2C Copy 0........................ : Ok
Module 2C Copy 1........................ : No copy
Module 2E Copy 0........................ : Ok
Module 2E Copy 1........................ : No copy
Module 5B Copy 0........................ : Ok
Module 5B Copy 1........................ : No copy
Module 26 Copy 0........................ : Ok
Module 26 Copy 1........................ : No copy
Module 22 Copy 0........................ : Ok
Module 22 Copy 1........................ : No copy
Module 48 Copy 0........................ : Ok
Module 48 Copy 1........................ : No copy
Module 49 Copy 0........................ : Ok
Module 49 Copy 1........................ : No copy
Module 4A Copy 0........................ : Ok
Module 4A Copy 1........................ : No copy
Module 01 Copy 0........................ : Ok
Module 01 Copy 1........................ : No copy
Module 1C Copy 0........................ : Ok
Module 1C Copy 1........................ : No copy
Module 10 Copy 0........................ : Ok
Module 10 Copy 1........................ : No copy
Module 12 Copy 0........................ : Ok
Module 12 Copy 1........................ : No copy
Module 11 Copy 0........................ : Ok
Module 11 Copy 1........................ : No copy
Module 14 Copy 0........................ : Ok
Module 14 Copy 1........................ : No copy
Module 61 Copy 0........................ : Ok
Module 61 Copy 1........................ : No copy
Module 02 Copy 0........................ : Ok
Module 02 Copy 1........................ : No copy
Module BF Copy 0........................ : Ok
Module BF Copy 1........................ : No copy
Module 46 Copy 0........................ : Ok
Module 46 Copy 1........................ : No copy
Module 4B Copy 0........................ : Ok
Module 4B Copy 1........................ : No copy
Module 21 Copy 0........................ : Ok
Module 21 Copy 1........................ : No copy
Module 17 Copy 0........................ : Ok
Module 17 Copy 1........................ : No copy
Module 2A Copy 0........................ : Ok
Module 2A Copy 1........................ : No copy
Module 2F Copy 0........................ : Ok
Module 2F Copy 1........................ : No copy
Module 1E Copy 0........................ : Ok
Module 1E Copy 1........................ : No copy
Module 5C Copy 0........................ : Ok
Module 5C Copy 1........................ : No copy
Module 29 Copy 0........................ : Ok
Module 29 Copy 1........................ : No copy
Module 2D Copy 0........................ : Ok
Module 2D Copy 1........................ : No copy
Module 30 Copy 0........................ : Ok
Module 30 Copy 1........................ : No copy
Module 34 Copy 0........................ : Ok
Module 34 Copy 1........................ : No copy
Module 38 Copy 0........................ : Ok
Module 38 Copy 1........................ : No copy
Module 3C Copy 0........................ : Ok
Module 3C Copy 1........................ : No copy
Module 45 Copy 0........................ : Ok
Module 45 Copy 1........................ : No copy
Module 31 Copy 0........................ : Ok
Module 31 Copy 1........................ : No copy
Module 35 Copy 0........................ : Ok
Module 35 Copy 1........................ : No copy
Module 39 Copy 0........................ : Ok
Module 39 Copy 1........................ : No copy
Module 3D Copy 0........................ : Ok
Module 3D Copy 1........................ : No copy
Module 4F Copy 0........................ : Ok
Module 4F Copy 1........................ : No copy
Module C3 Copy 0........................ : Ok
Module C3 Copy 1........................ : No copy
Module FA Copy 0........................ : Ok
Module FA Copy 1........................ : No copy
Module FF Copy 0........................ : Ok
Module FF Copy 1........................ : No copy
Module D4 Copy 0........................ : Ok
Module D4 Copy 1........................ : No copy
Module D5 Copy 0........................ : Ok
Module D5 Copy 1........................ : No copy
Module D6 Copy 0........................ : Ok
Module D6 Copy 1........................ : No copy
Module E9 Copy 0........................ : Ok
Module E9 Copy 1........................ : No copy
Module C4 Copy 0........................ : Ok
Module C4 Copy 1........................ : No copy
Module DA Copy 0........................ : Ok
Module DA Copy 1........................ : No copy
Module DB Copy 0........................ : Ok
Module DB Copy 1........................ : No copy
Module F4 Copy 0........................ : Ok
Module F4 Copy 1........................ : No copy
Module E5 Copy 0........................ : Ok
Module E5 Copy 1........................ : No copy
Module F5 Copy 0........................ : Ok
Module F5 Copy 1........................ : No copy
Module EF Copy 0........................ : Ok
Module EF Copy 1........................ : No copy
Module ED Copy 0........................ : Ok
Module ED Copy 1........................ : No copy
Module E4 Copy 0........................ : Ok
Module E4 Copy 1........................ : No copy
Module E3 Copy 0........................ : Ok
Module E3 Copy 1........................ : No copy
Module F3 Copy 0........................ : Ok
Module F3 Copy 1........................ : No copy
Module E7 Copy 0........................ : Ok
Module E7 Copy 1........................ : No copy
Module D7 Copy 0........................ : Ok
Module D7 Copy 1........................ : No copy
Module D8 Copy 0........................ : Ok
Module D8 Copy 1........................ : No copy
Module D2 Copy 0........................ : Ok
Module D2 Copy 1........................ : No copy
Module FD Copy 0........................ : Ok
Module FD Copy 1........................ : No copy
Module C5 Copy 0........................ : Ok
Module C5 Copy 1........................ : No copy
Module DC Copy 0........................ : Ok
Module DC Copy 1........................ : No copy
Module C6 Copy 0........................ : Ok
Module C6 Copy 1........................ : No copy
Module C9 Copy 0........................ : Ok
Module C9 Copy 1........................ : No copy
Module CD Copy 0........................ : Ok
Module CD Copy 1........................ : No copy
Module CF Copy 0........................ : Ok
Module CF Copy 1........................ : No copy
Module CB Copy 0........................ : Ok
Module CB Copy 1........................ : No copy
Module CC Copy 0........................ : Ok
Module CC Copy 1........................ : No copy
Module CA Copy 0........................ : Ok
Module CA Copy 1........................ : No copy
Module CE Copy 0........................ : Ok
Module CE Copy 1........................ : No copy
No copy exists
Read ROM
Into file............................... : <HDD Profile>\Data\ROM\ROM_WDC WD2000JD-00HBB0.bin
HDDs ROM reading error Data request error - Device Error Detected: "Unknown error. Error code: 0017"
Read ROM modules
Into file............................... : <HDD Profile>\Data\ROM
Module : 0A............................. : Module 0A reading error Data request error - Device Error Detected: "SCT INVALID LBA"
Module : 30............................. : Ok
Module : 47............................. : Module 47 reading error Data request error - Device Error Detected: "SCT INVALID LBA"

Hardware modules checking

View ROM information
HDDs ROM reading error Data request error - Device Error Detected: "Unknown error. Error code: 0017"

[ddr]

Oh, and i receive this error when attempting to read out the ROM...


Regards
Joel

[AJ2008]

Are you sure you selected 32 Bit Caviar for this model? Also, can you read ROM in Kernel mode? What does ID show when you connect it to utility?

Looks like some of the service information can be read, so maybe all heads are not bad. Maybe PCB could be bad too, Does the disk knock when powered?

[ddr]

Hi,

I now have access to the ROM on the drive to alter the head map.

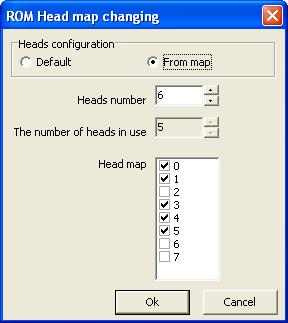

The head map is a bit strange see picture.. But anyway, at least now i can alter it. Turning off Head 0 allowed the drive to come ready nicely and behave in the utility, however it will not read ANY SA data.

Disabling head 1 results in the drive knocking.

With all Heads left on (except head 2), the drive becomes ready eventually, then hangs when the utility is started and will not read the rom. See below logs (And yes all heads as per picture were activated in kernal mode, but the logs shows only the 0 Head.) Any ideas?


Techno mode key:
HDD geometry loading.................... : Ok
Cyl Count............................... : 81003
Head Count.............................. : 1
SPT..................................... : 900

RAM:
Zone allocation table................... : Ok

ROM Read Error WD Techo ON Error Drive is not ready
????? ??????? ????????? ?? ?????? ????? ???????????
Head map................................ : 0

Service area:
Configuration loading................... : Ok
Master Password......................... : "WDCWDCWDCWDCWDCWDCWDCWDCWDCWDCWD"
User Password........................... : has not been set
Translation overlay checking (Copy 0)... : Ok
Translation overlay checking (Copy 1)... : Header error

[labtech]

I would say check your IDE cable and perhaps replace the drive PCB
