Shorting Points for 100535704 Rev. C

[digital]

Hello,
I have a Seagate ST3500413AS 7200-12, which sounds like it comes ready perfectly, but I cannot read a drive ID or capacity with the PC3K and I have no idea what the shorting points are on this PCB, it is not in the manual. Can anybody help me out with this?
Thank you for anything anybody has on this issue and drive!

[carlosmar]

I have the same problem, can anyone help us. thanks.

[AJ2008]

Best to post a picture of the PCB here

[Arihant]

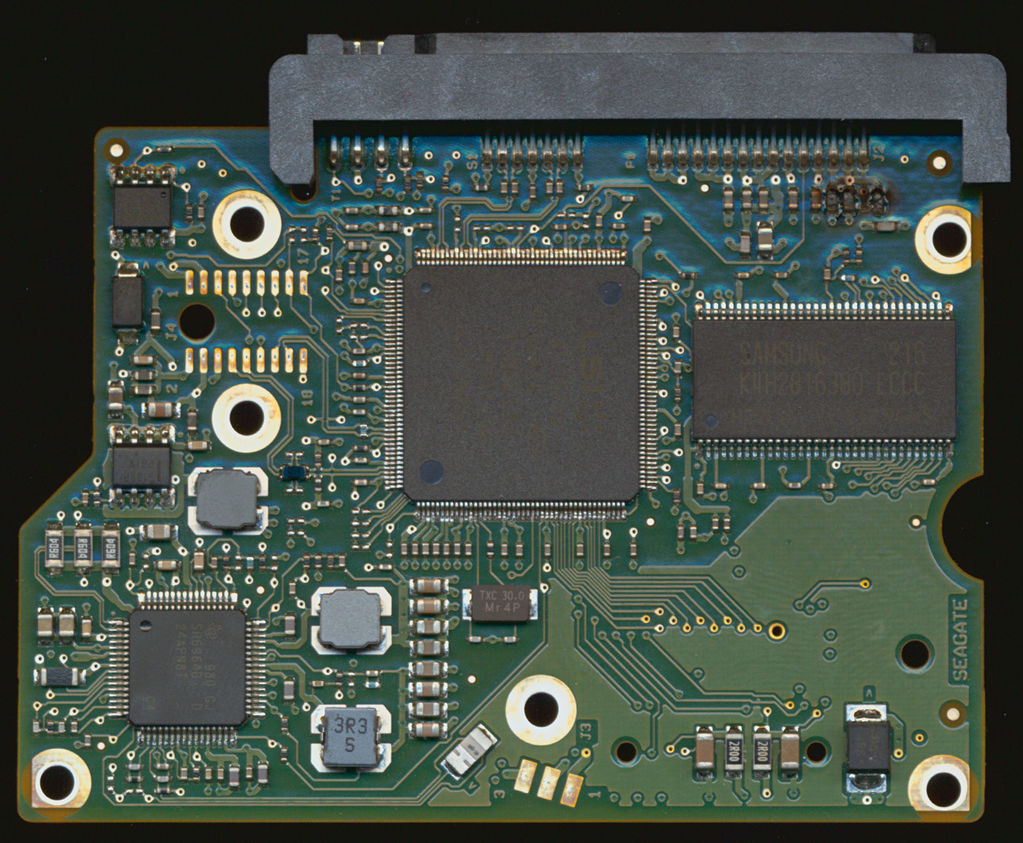

attached the photos

Thanks,

[AJ2008]

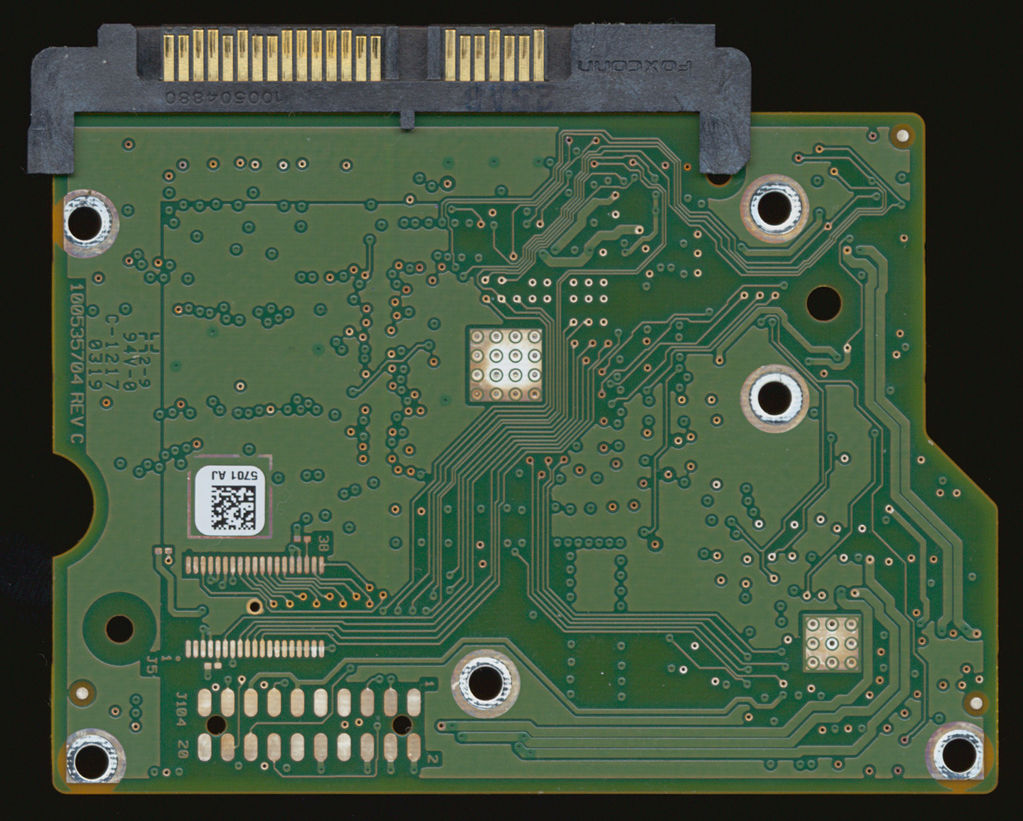

Try this

short points


[Arihant]

try this

[AJ2008]

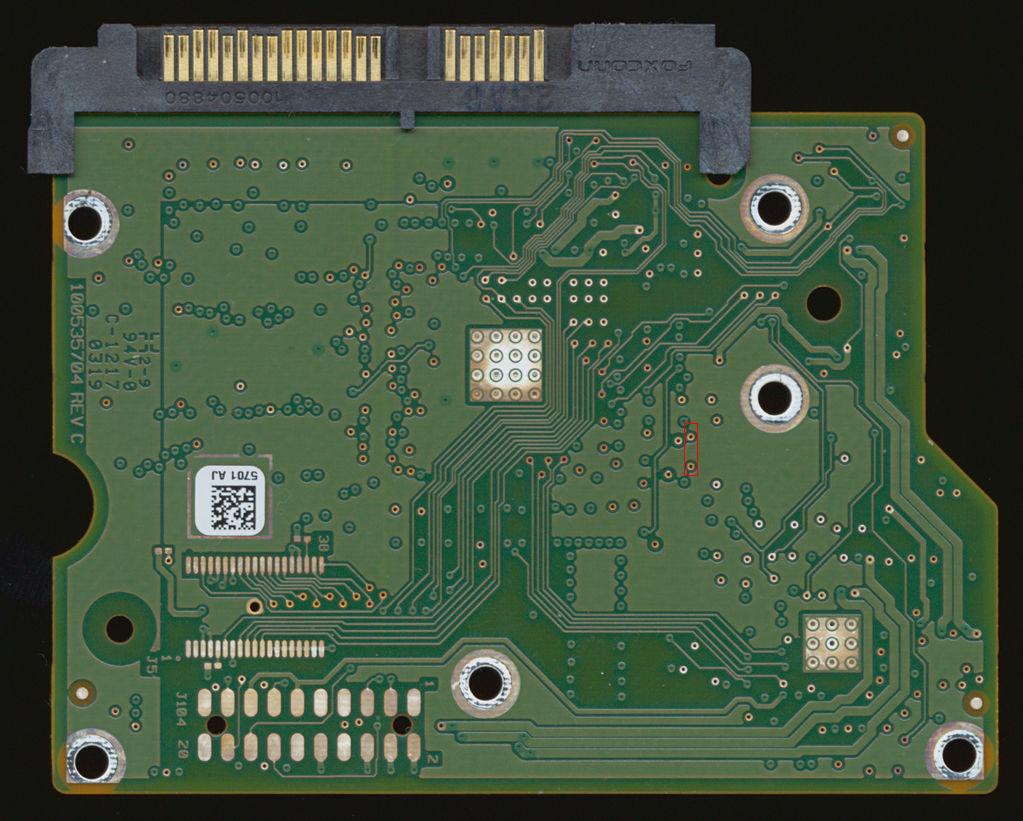

The points I marked are horizontally aligned and are to the right of the screwhole. From other side, would be closest 2 horizontally aligned points to the left of the screwhole.

[hddr49]

thank you AJ, and thank you search field
