Sony 16GB 70MBs Micro SD

Questions about different pinouts, scheme of soldering and required equipment

Moderators: Nick_TS, Roman_TS, Filipp_TS

Post Reply

elderb
Newbie
Posts: 2
Joined: 13.04.16
Reputation: 0 / (2)

Sony 16GB 70MBs Micro SD

Postby elderb » 09.10.17, 22:45

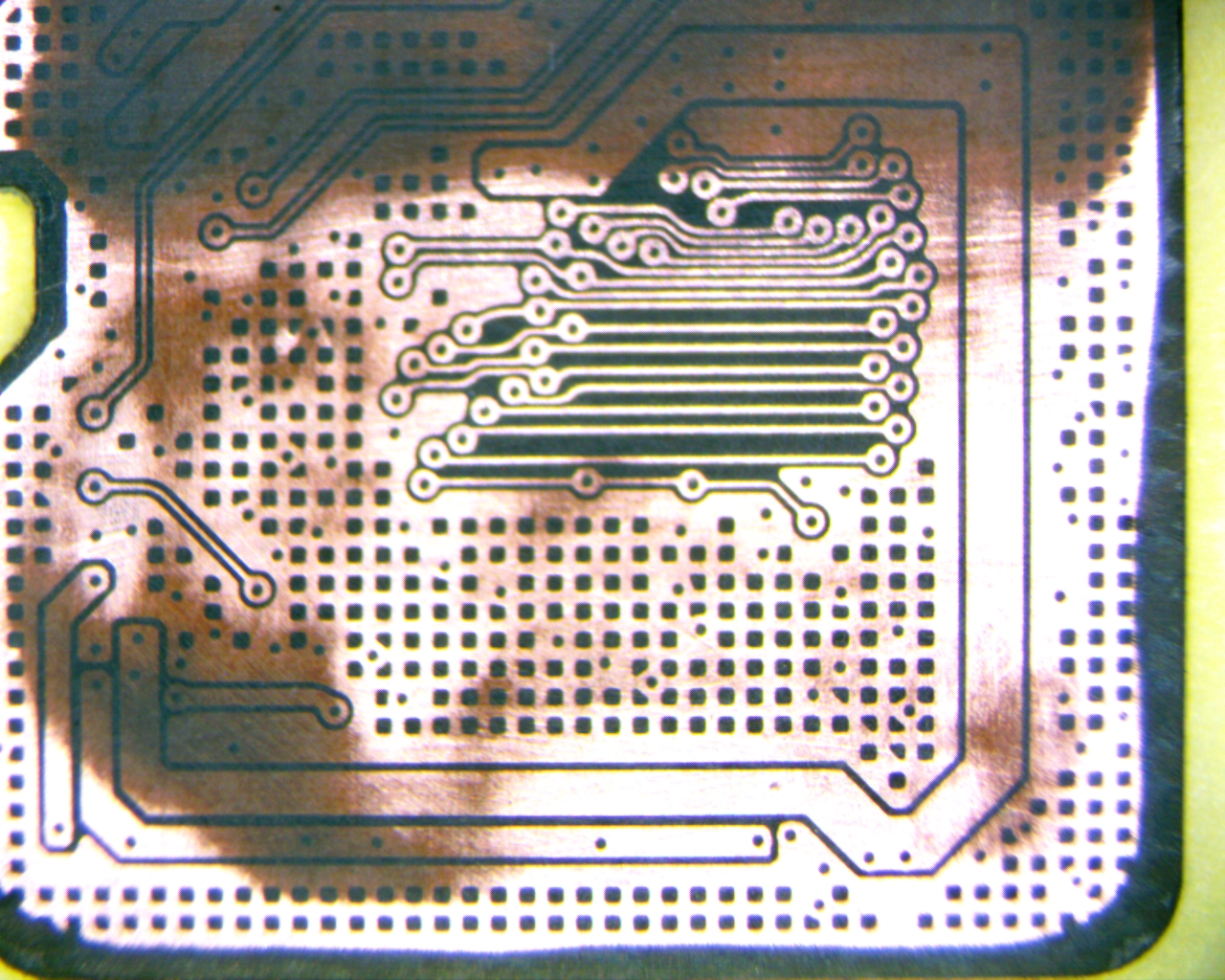

Looking for help on connection pinouts for this layout. Thanks in advance.


exposed 1.jpg
exposed 1.jpg (1.03 MiB) Viewed 6348 times
Top

lka124
Newbie
Posts: 45
Joined: 07.10.14
Reputation: 2 / (22)

Re: Sony 16GB 70MBs Micro SD

Postby lka124 » 10.10.17, 06:03

looks like Type 15?
Top
User avatar
Roman_TS
Site Admin
Posts: 761
Joined: 09.02.11
Reputation: 28 / (278)

Re: Sony 16GB 70MBs Micro SD

Postby Roman_TS » 10.10.17, 09:14

lka124 wrote:Source of the post looks like Type 15?

No, it's totally different. Sometimes even a small difference in pin map might be a reason of monolith reading problem. But in such case - most likely it will not work at all.
With best regards
ACELab Technical Support
ts.acelab.eu.com
blog.acelab.eu.com
Top
