This looks like microSD Type 1 to me. Can you confirm?

Postby osity » 18.04.17, 17:33

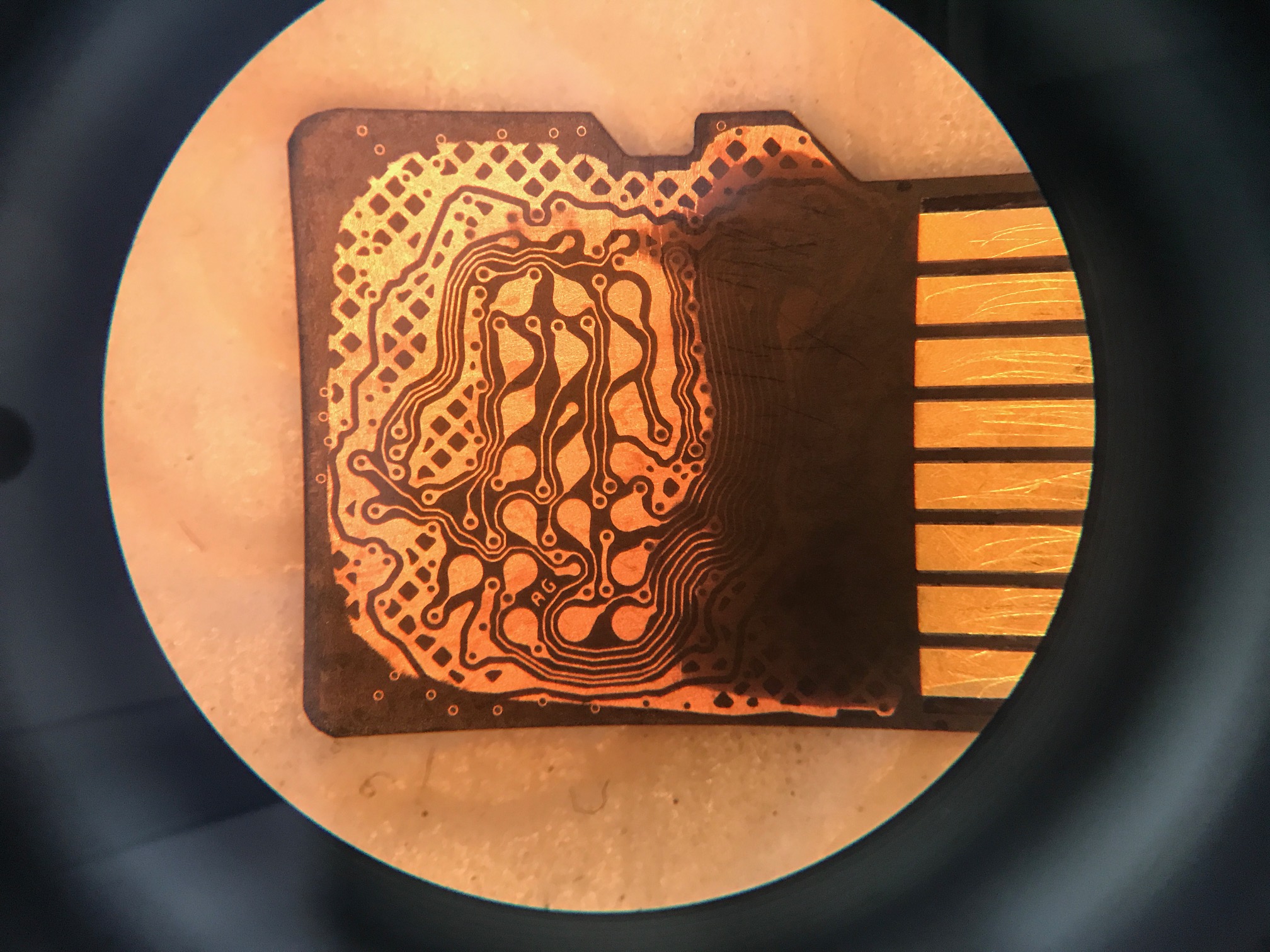

I have attached a pic of my micro SD card.
Does this look like microSD Type 1 to you?

ACE MONOLITH DATABASE:
http://www.pc3000flash.com/solbase/mono ... 2&lang=eng
Attachments
Top
User avatar
Roman_TS
Site Admin
Posts: 761
Joined: 09.02.11
Reputation: 28 / (278)

Re: This looks like microSD Type 1 to me. Can you confirm?

Postby Roman_TS » 19.04.17, 08:51

Hello! Yes, looks very similar to Type 1. Matrix of outputs is 7x3.
