Unknow 16GB Micro SD without Pinout

Questions about different pinouts, scheme of soldering and required equipment

Moderators: Nick_TS, Roman_TS, Filipp_TS

Post Reply

data_labcenter
Newbie
Posts: 3
Joined: 09.03.16
Reputation: 0 / (2)

Unknow 16GB Micro SD without Pinout

Postby data_labcenter » 24.03.26, 14:47

Hello,

I have a microSD card and I'm using the Type 2 schematic on Global Center.

I connected the microSD card to the Spider board and, I configured all the pins, but the card isn't returning its identifier.
Has anyone ever had this card ?

Thank you for your help.
Nathan.
Attachments

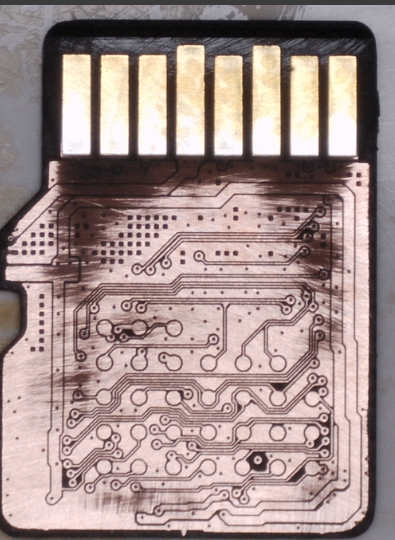

Capture d'écran 2026-03-23 165032.png
Capture d'écran 2026-03-23 165032.png (51.72 KiB) Viewed 1340 times

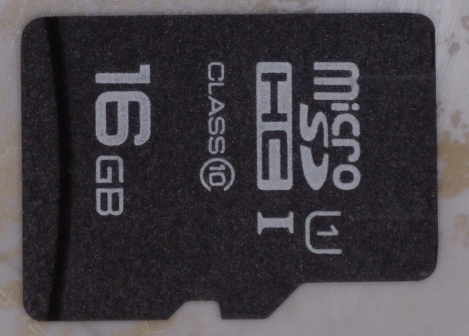

Capture d'écran 2026-03-23 161712.png
Capture d'écran 2026-03-23 161712.png (65.94 KiB) Viewed 1340 times
Top
User avatar
arvika
New user
Posts: 84
Joined: 14.10.09
Reputation: 3 / (25)

Re: Unknow 16GB Micro SD without Pinout

Postby arvika » 28.03.26, 21:26

This card use LDPC, page structure: 4628_4692. Chip-off do not allow you recover data.
Flash Killer - everyday new resources (pinout, XOR, ECC,config) for flash devices
