Pinout apacer 16gb

phonerecoverysrl · Postby **phonerecoverysrl** » 28.10.21, 16:03

Hi all
Can anyone help me with pinout of this MicroSd ?

phonerecoverysrl · Postby **phonerecoverysrl** » 02.11.21, 07:36

Hi again,

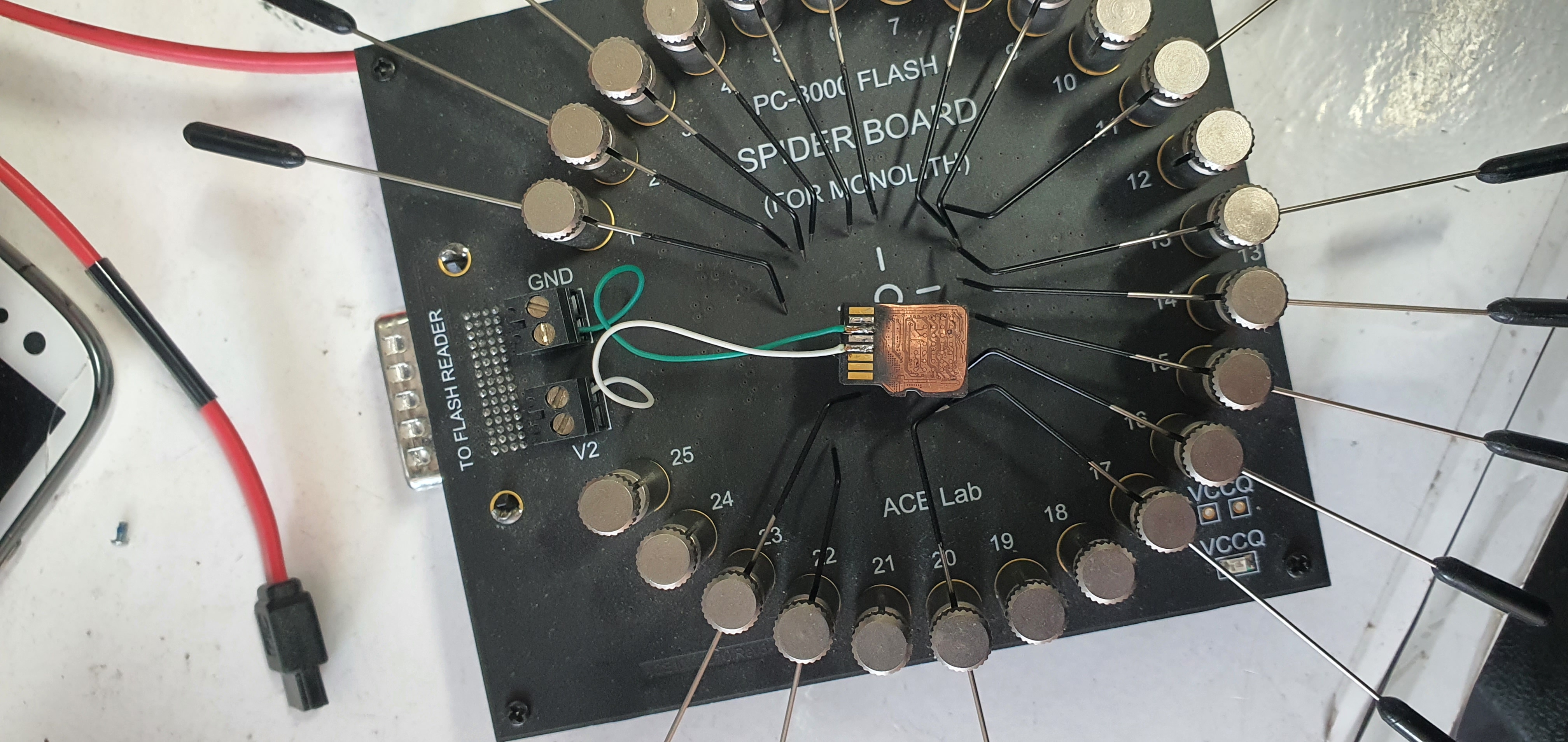

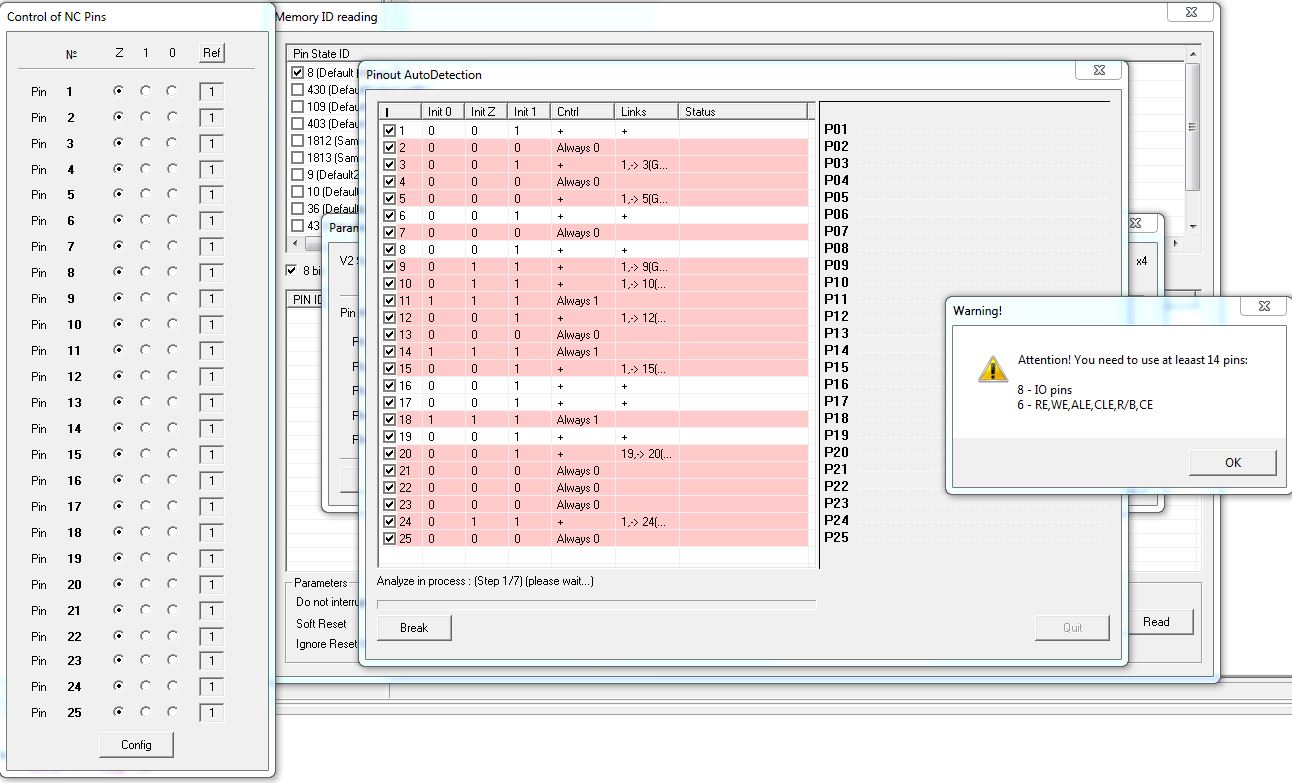

If anyone can please help me up a bit here, i have set all 25 pins out of 30 and i tried several connecting pin methods and using the autodetected method always returns an error.

Postby **Roman_TS** » 02.11.21, 08:45

Hello.

You are using a pinout autodetection feature instead of the manual needles arrangement using the printed scheme. Here is the video with the description:
https://youtu.be/0oTtTwXnWCM?t=157

phonerecoverysrl · Postby **phonerecoverysrl** » 02.11.21, 15:38

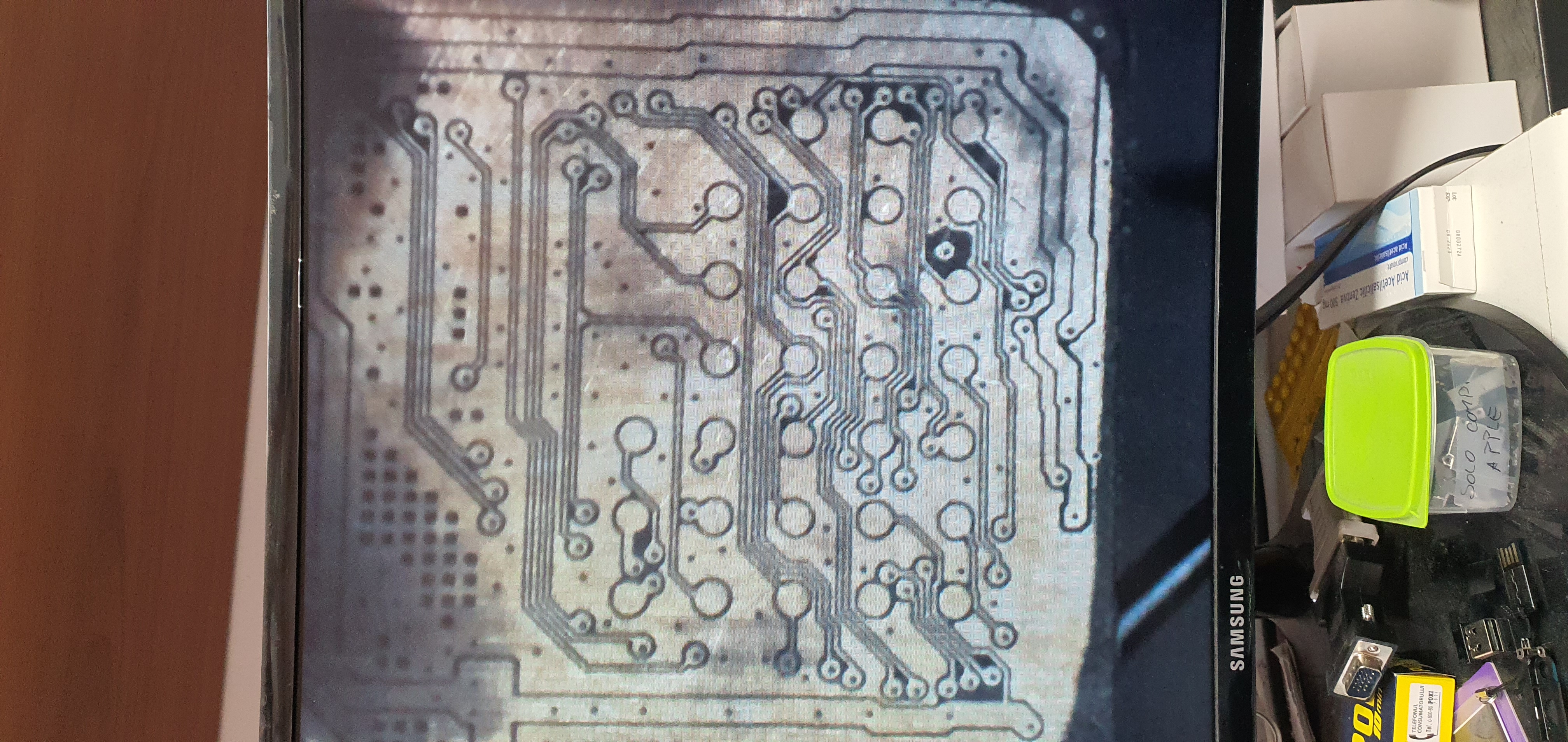

I have not found a manual schematic for this pcb in acelab current database. Is there a certain generic schematic for this sd card that i could use? Does anyone have a pinnout schematic for this pcb?

Postby **Roman_TS** » 02.11.21, 16:29

Pinout research - is an additional branch of Data Recovery, and we do not pay too much attention to it. There are some companies in Europe, Russia, and South America that can help you to outsource the case and detect the layout. Please check their websites:

http://greydcode.com/monolith.html

https://multi-com.pl

https://datarecoveryhdd.com

arvika · Postby **arvika** » 10.11.21, 18:52

Check also: http://odzyskiwanie-danych.com.pl/monol ... abase.html

PC-3000 Forum
