PCB 2060-810035 to SATA

andrew55 · Postby **andrew55** » 29.12.21, 07:14

Good morning !
Colleagues, tell me which point leads to which contact on the connector? I do not have enough intelligence. :-(

msurgeon · Postby **msurgeon** » 30.12.21, 01:48

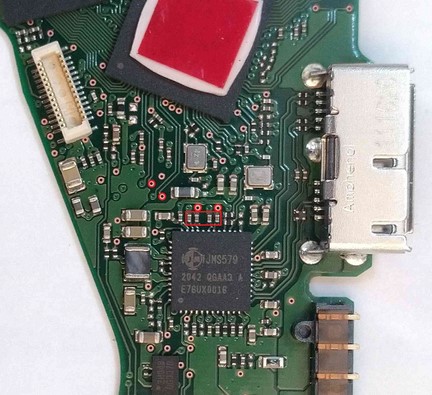

: 810035 wiring.jpg (14.29 KiB) Viewed 28177 times

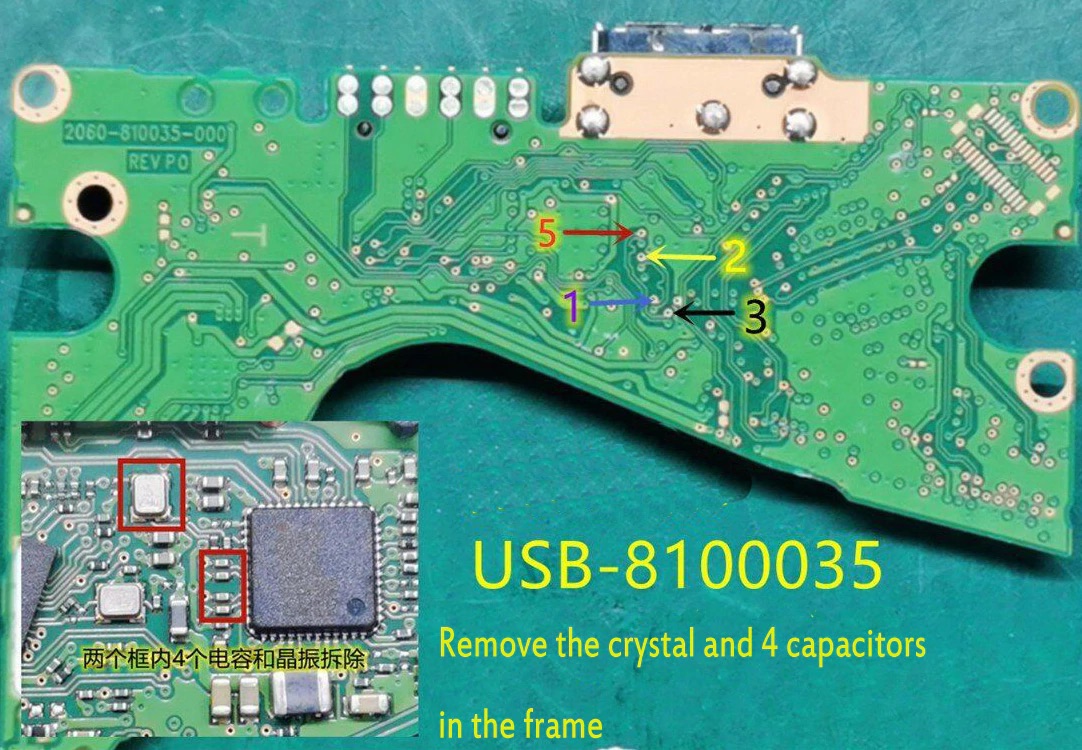

Substitute 2, 3, 5 and 6 on the 7-pin connector for 1,2 ,3, and 5 in picture.

andrew55 · Postby **andrew55** » 30.12.21, 13:47

Big thanks!

andrew55 · Postby **andrew55** » 09.01.22, 06:34

Friends!
I find com port points for this PCB. You have may be ?

DataMedics · Postby **DataMedics** » 11.01.22, 18:34

Com port should be the same as you see here: https://www.data-medics.com/forum/threa ... /post-7071

Hddex · Postby **Hddex** » 21.10.22, 22:25

I'm doing the same but is the power coming from the USB connector already on the PCB after soldering SATA connections to the PCB? If so how do you control it from the PC-3000 portable if it is going to be connected to a SATA connection and not from USB connection. Does it really matter if I use another source power? :shockable:
