ST3500413AS - short Points for PCB 100532367 REV C

Postby AdasRip » 28.07.18, 12:10

Hello,
do you know where to find short points are on this PCB?
Regards

Top

northwind
New user
Posts: 147
Joined: 14.06.11
Reputation: 5 / (47)

Re: ST3500413AS - short Points for PCB 100532367 REV C

Postby northwind » 29.07.18, 07:50

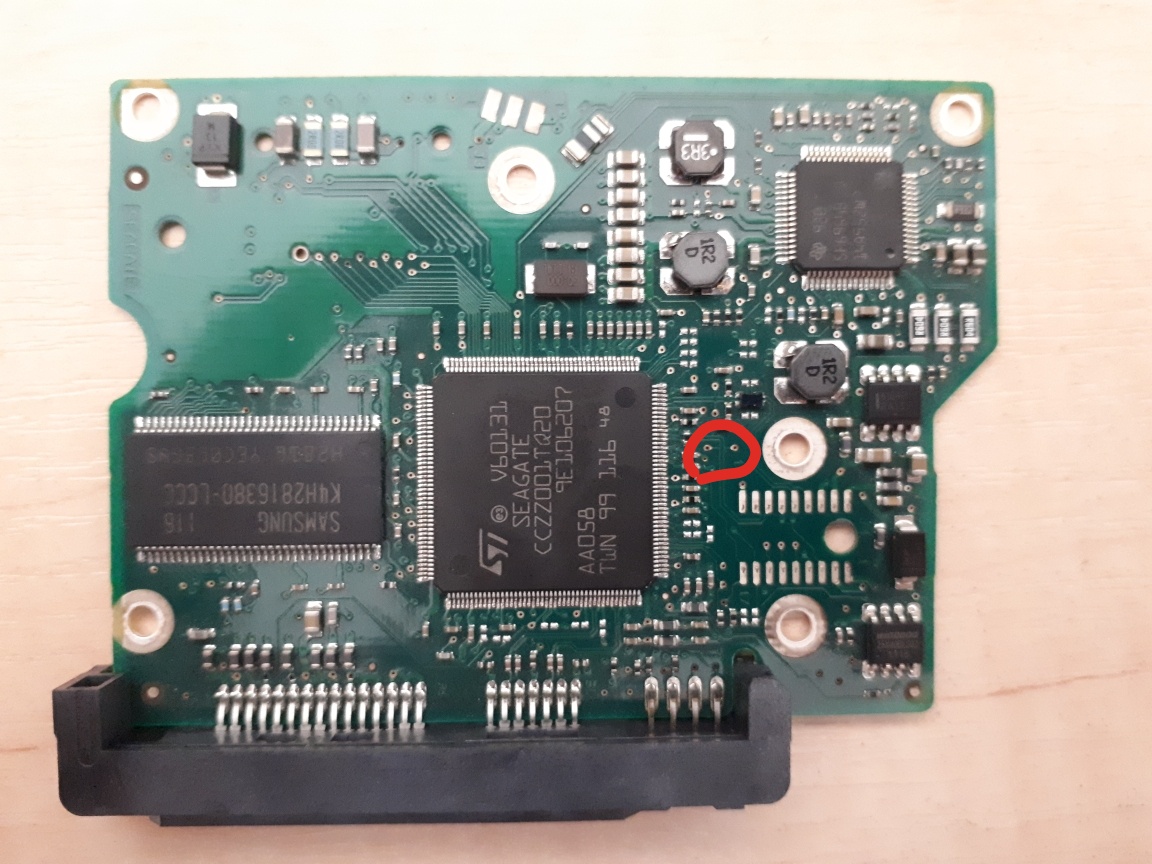

Try this
Top

AdasRip
New user
Posts: 56
Joined: 28.04.14
Reputation: 2 / (17)

Re: ST3500413AS - short Points for PCB 100532367 REV C

Postby AdasRip » 31.07.18, 15:41

Thank you very much.
Top

northwind
New user
Posts: 147
Joined: 14.06.11
Reputation: 5 / (47)

Re: ST3500413AS - short Points for PCB 100532367 REV C

Postby northwind » 31.07.18, 15:49

No problem!
